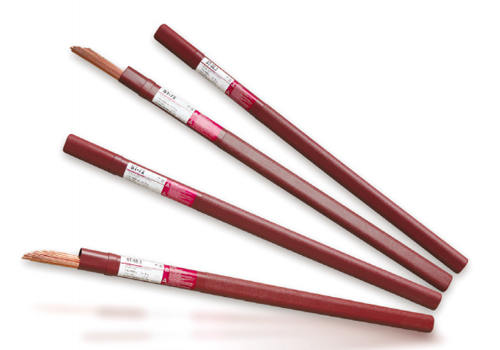

HYUNDAI TIG WELDING ELECTRODES
MILD STEEL
70S-G Sizes: 1.6mm, 2.0mm, 2.4mm
70S-6 Sizes: 1.6mm, 2.0mm, 2.4mm
ER80SD-2 Sizes: 2.00mm, 2.4mm
ER90-SG Sizes: 2.4mm
STAINLESS STEEL

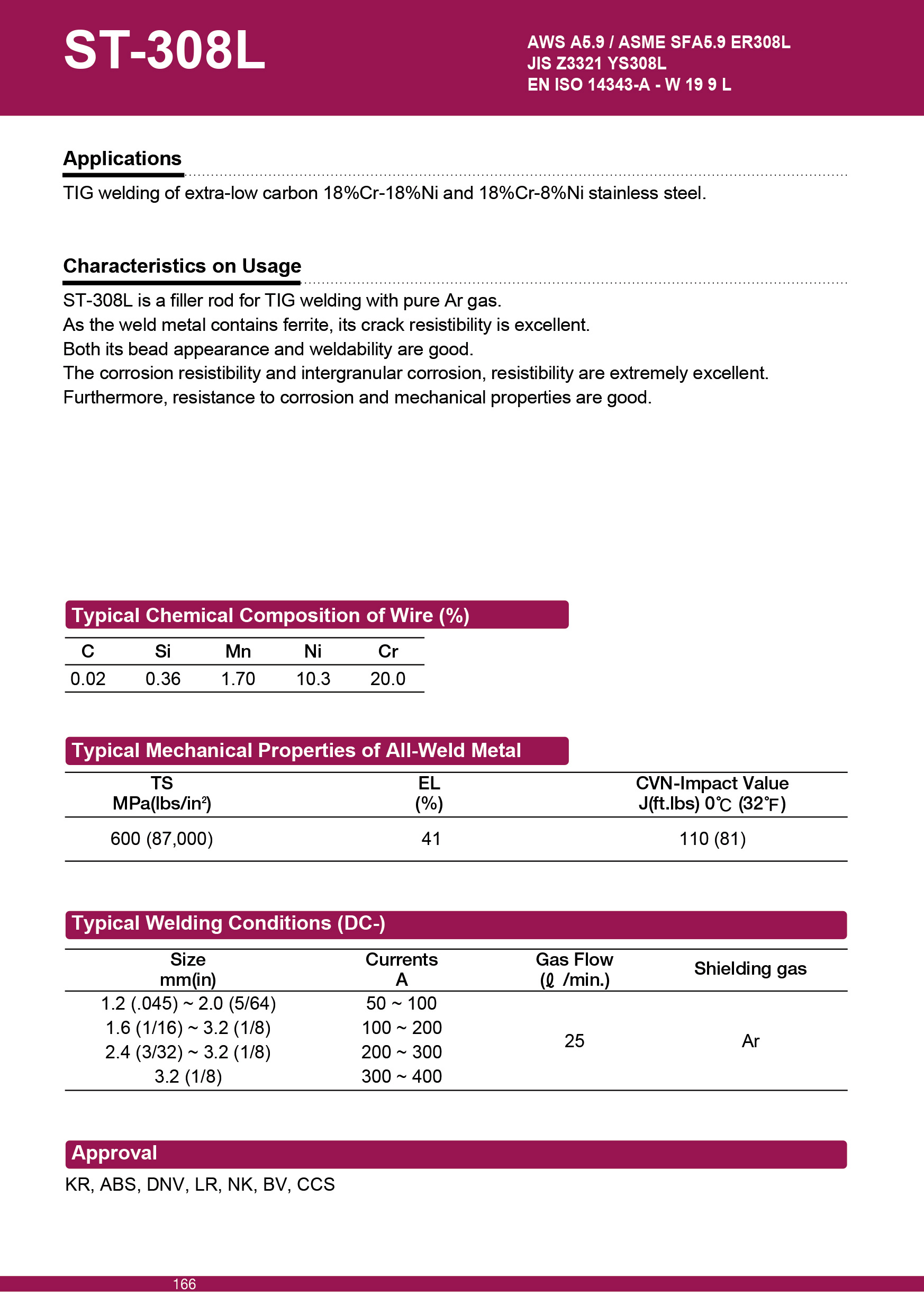

ST-308L is a filler rod for TIG welding with pure Ar gas. As the weld metal contains ferrite, its crack resistibility is excellent. Both its bead appearance and weldability are good. The corrosion resistibility and intergranular corrosion, resistibility are extremely excellent. Furthermore, resistance to corrosion and mechanical properties is good. Size 1.6mm, 2.0mm, 2.4mm
ST-309L is a filler rod for TIG welding with pure Ar gas. As the weld metal contains ferrite, its crack resistibility is excellent. Furthermore, resistance to corrosion and heat is extremely good. Sizes:1.6mm, 2.4mm

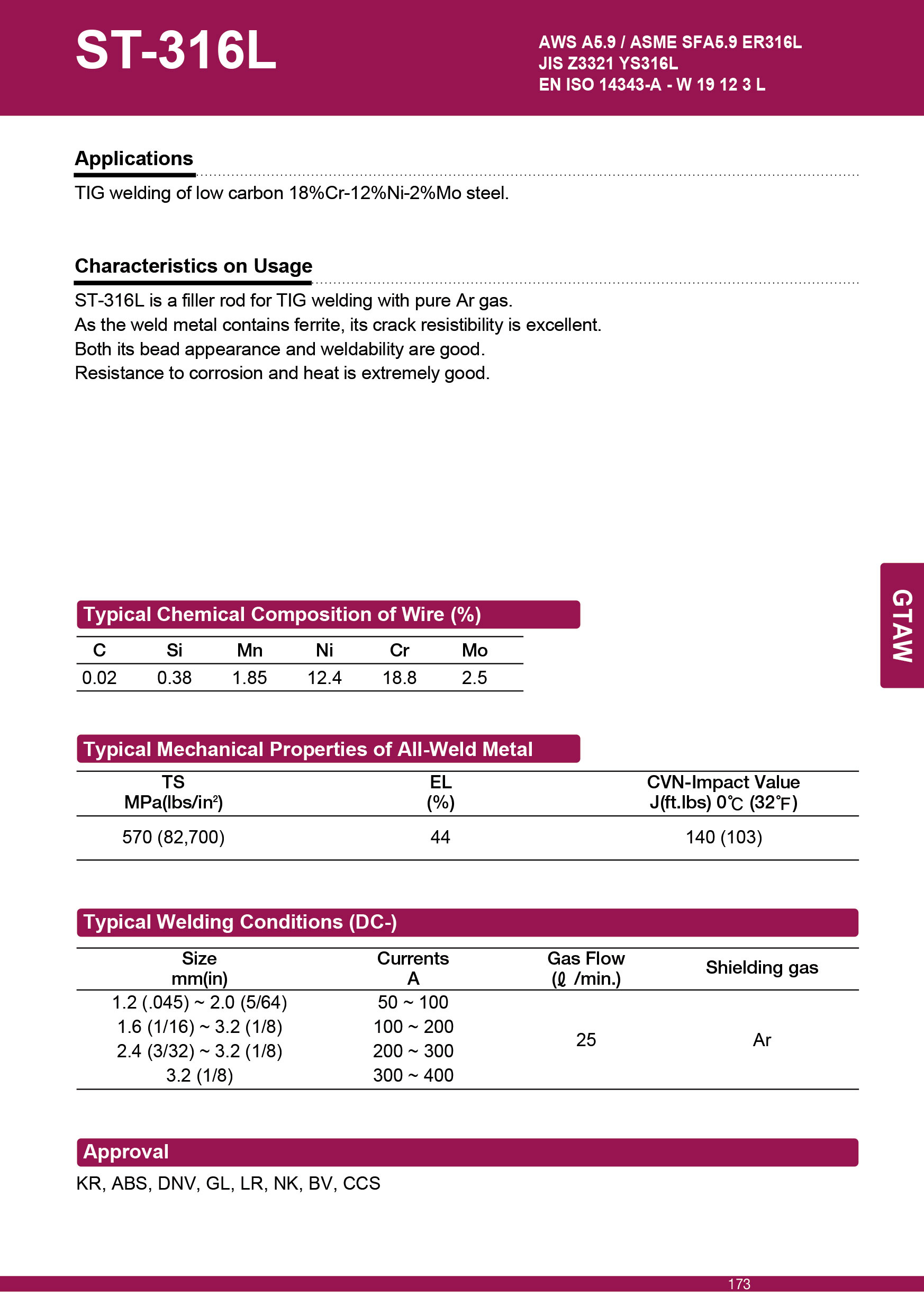

Though ST-316L is austenitic type stainless steel wire, the weld metal contains ferrite and resistance to crack is quite good. The usability, such as, arc stability and assimilability of welds to base metal is good. Resistance to corrosion and heat is quite good. Sizes: 1.6mm, 2.0mm, 2.4mm, 3.2mm

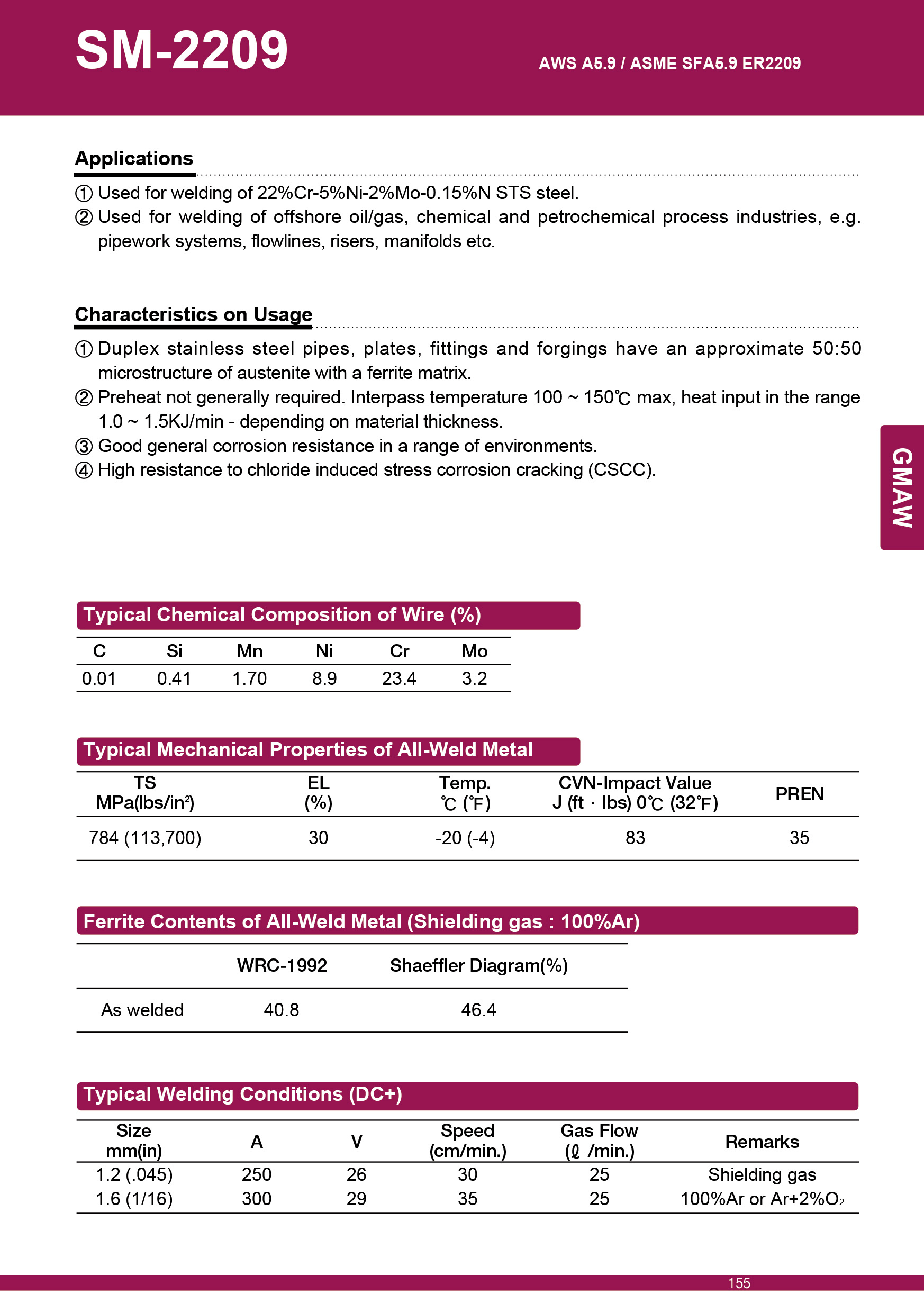

SM-2209 - Duplex stainless steel pipes, plates, fittings and forgings have an approximate 50:50 microstructure of austenite with a ferrite matrix.Preheat not generally required. Interpass temperature 100 ~ 150℃max, heat input in the range 0.5 ~ 1.5KJ/min - depending on material thickness. Good general corrosion resistance in a range of environments.High resistance to chloride induced stress corrosion cracking (CSCC).
ALUMINIUM TIG
4043 (5% SIL) Sizes: 1.6mm, 2.0mm, 2.4mm
5356 (5% Mg) Sizes: 1.6mm, 2.0mm, 2.4mm
BRONZE BRAZING RODS
Sizes: 1.6mm, 2.0mm, 2.4mm
COPPER COATED RODS
Sizes: 1.6mm, 2.0mm, 2.4mm
